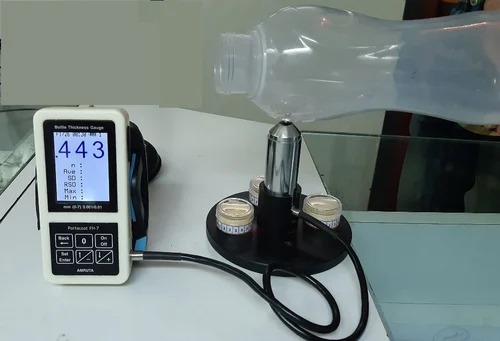

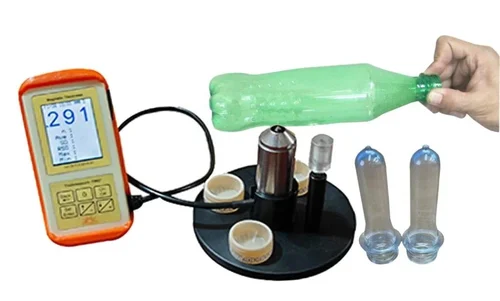

A Bottle Thickness Gauge, also known as a bottle wall thickness gauge, is a tool used to measure the thickness of the walls of a bottle. A probe or sensor that is pressed up against the bottle wall serves as the gauge's primary component, and a digital readout or indicator shows the thickness measurement. The gauge can be applied to both glass and plastic bottles, among other bottle types. It can be run manually or automatically by being integrated into a production line. To ensure that every bottle has a uniform thickness, the test results can be used to modify the bottle manufacturing procedure. In order to ensure that bottles are correctly formed and adhere to industry standards for quality control, the bottling industry uses a bottle thickness gauge. A key quality control factor for bottles is their wall thickness because it has an impact on the bottle's strength, durability, and ability to be properly sealed.

• Range: 0-7mm
• Accuracy: ±1%.
• Low range resolution: 0.01mm & 0.001mm(below 1mm).
• Principle: Magnet-o-static.
• Logging rate: 1,2,5,10,20 readings per second.
• Data memory: Yes.
• Calibration: Self-calibration using masters.
• Weight: 300grams.
• Power: Rechargable battery.
• Interfaces: RS232 TTL + IrDA 1.0.

Accuracy and Thickness Range

Target Ball Thickness Range Diameter accuracy that has been calibrated using a standard probe.

• (1.50 mm)(0.001-2.00 mm) ±2%*
• (2.50 mm)(0.001-3.90 mm) ±2%*
• (4.00 mm)(0.001-7.00 mm) ±2%*

Feature

• Toughened probe tip.
• Steel balls for precision targets.
• Statistics of the chosen reading (Min, Max, Average, Standard Deviation, Relative Standard Deviation).
• Up to 1500 readings can be stored.
• Reading can be stored along with various job names, dates, months, times, and job statistics.
• Old readings can be shown on the screen or sent to a computer for data analysis and recording.

Accessories

• Rechargeable Battery and Charger (Battery does not need to be removed to charge).
• RS232 cable with a 9-pin connector for computers.
• USB-connected computer with serial to USB converter.
• Target ball set, each with 15 pieces.
• Wooden box for protection.

A bottle thickness gauge is a device used to measure the thickness of plastic or glass bottles. It is an essential tool for manufacturers who need to ensure the quality of their bottles and meet the required industry standards. In this article, we will discuss why and who should buy a bottle thickness gauge.
