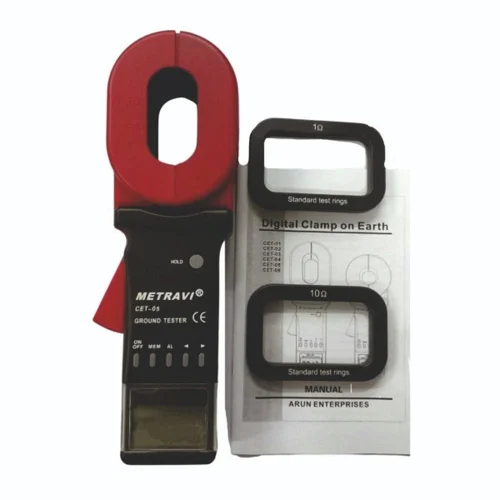

CET-05 Clamp On Ground Resistance Tester
₹27,500
Product Code :
| Test Method | Clamp On |
|---|---|
| Resistance Range | 0.01Ω - 1500Ω |
| Display Type | Clamp Digital |
| Power Source | Rechargeable |
| Earth Tester Type | Clamp Type |
| Protection Class | CAT III |
| IP Rating | IP54 |
| Max Test Voltage | 20 V AC |
THIS MODEL IS BEING PHASED OUT. PLEASE CLICK HERE TO CHECK OUT METRAVI CET-05B INSTEAD FOR SIMILAR AND BETTER SPECIFICATIONS.

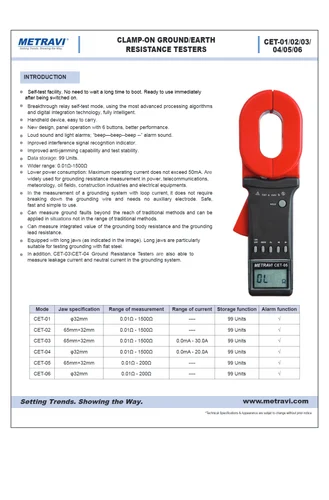

The Metravi CET series Clamp-on Ground Resistance Testers feature:
- Self-test facility. No need to wait a long time to boot. Ready to use immediately after being switched on.
- Breakthrough relay self-test mode, using the most advanced processing algorithms and digital integration technology, fully intelligent.
- Handheld device, easy to carry. New design, panel operation with 6 buttons, better performance. Loud sound and light alarms; “beep—beep–beep –” alarm sound.
- Improved interference signal recognition indicator. Improved anti-jamming capability and test stability. Data storage: 99 Units. Wider range: 0.01Ω-200Ω.
- Lower power consumption: Maximum operating current does not exceed 50mA. Are widely used for grounding resistance measurement in power, telecommunications, meteorology, oil fields, construction industries and electrical equipments.
- In the measurement of a grounding system with loop current, it does not require breaking down the grounding wire and needs no auxiliary electrode.
- Safe, fast and simple to use.
- Can measure ground faults beyond the reach of traditional methods and can be applied in situations not in the range of traditional methods.
- Can measure integrated value of the grounding body resistance and the grounding lead resistance.
- Equipped with long jaws (for some models). Long jaws are particularly suitable for testing grounding with flat steel.
