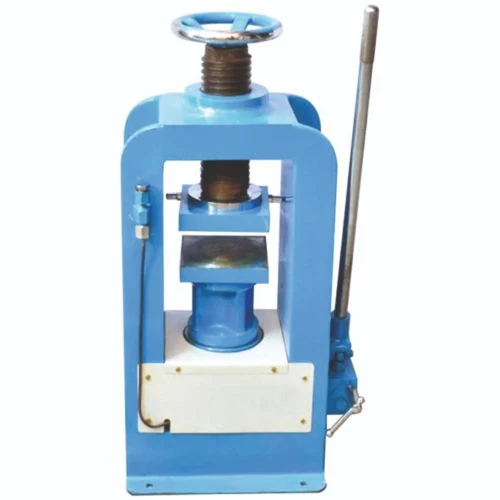

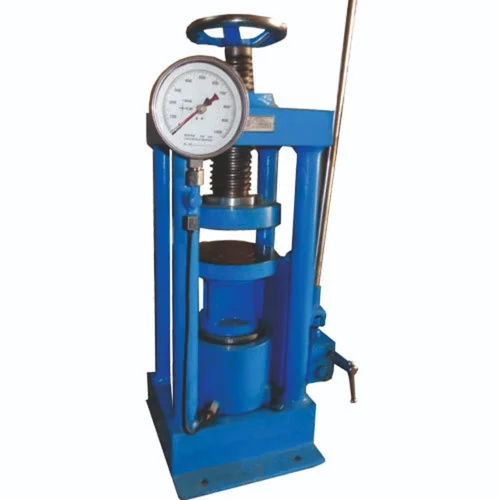

Compression Testing Machine Hand Operated
₹45,000
Product Code :
| Capacity | 1000 kN |
|---|---|
| Display Type | Analog |
| Control Type | Manual |
| Max Cube Size | 150 mm |
| Max Cylinder Dia | 150 mm |
| Accuracy Class | Class 1 |
| Phase | Single phase |
| Frame Type | Channel type |
Standards: IS 516, BS 1881Specification: In these load frames “C” channels are used, they are welded at the top as well as bottom and with stand high loads. A hydraulic jack is fitted at centre of the base of the load frame, over which can be fitted lower platen and spacer block with the help of centering pin. A lead screw passes through the top of the frame. To the lower end of this lead screw is fixed the upper platen with spherical seat for self alignment. The platens are accurately machined, hardened and polished. The lower platen grooves to correctly place the specimen. Available Capacity. 1000 kn (100 Ton) 1200 kn (120 Ton) 1500kn (150 Ton) 2000kn (200 Ton)
Features:
- 1000 kn (100 Ton)
- 1200 kn (120 Ton)
- 1500kn (150 Ton)
- 2000kn (200 Ton)
