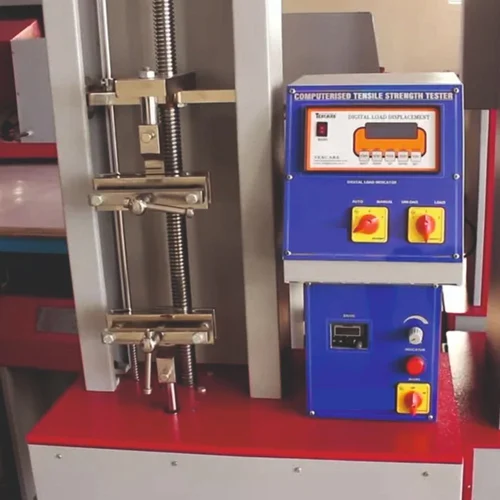

Computerized Tensile Testing Machine
₹129,500
Product Code :
| Capacity | 500 N |
|---|---|
| Loading Type | Electromechanical |
| Control Mode | PC Based |
| Frame Type | Single Column |
| Test Material | Paper, Adhesive, Metal, Plastic, Cable, Textile, Rubber |
| Max Crosshead Travel | 500 mm |
| Software Features | Graph Plotting |
| Speed Range | 0.5-500 mm/min |
Tensile Strength Tester For Rubber And Plastic that is used for determining the breaking force of any fabric, rubber sheet and wire rope, HDPE Bag, cable, polymers, etc.
Related Standards:
- ASTM D 434
- ASTM D 1578
- ASTM D 5034
- ASTM D 5035
- BS 1610
- BSEN 1002 – 3
- DIN 51221
Specification:
- The Capacity of Tester: 500 Kgf. (Accuracy: 100gm)
- S Type Load Cell fixed with Top Grip
- Traverse Speed: 300 & 500mm /min. (Adjustable)
- Variable Speed Models are also available
- Max. Grip Separation: 1000 mm
- Min. Grip Separation: 25 mm
- Top Grip is fixed and Bottom Grip is Movable Type
- Elongation measurement by Steel Scale and Digital Counter Meter Both
- Digital Display of Load and Elongation
- Peak Value of the Last test can be read on memory
- User-friendly key panel with switch of Zero setting and peak value of the last test
- Motor: 1 HP Single Phase 220 V 50 Hz
- Power: 220 V AC 50 Hz
- Safety Device: By Limit Switch to protect from Over Traverse
