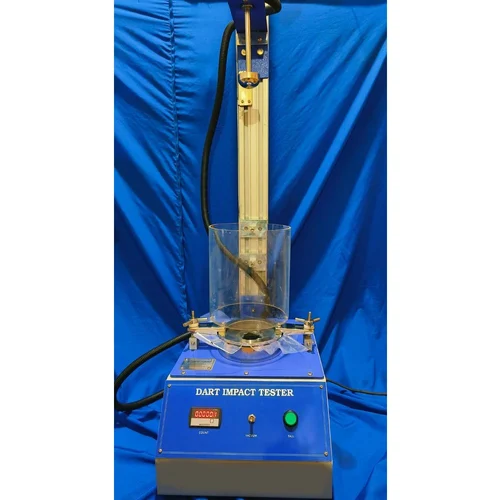

Dart Impact Tester
₹89,500
Product Code :
| Dart type | Dart A |
|---|---|
| Max drop height | 660 mm |
| Dart weight range | 50-200 g |
| Film width | 150 mm |
| Standard | ASTM D1709 |
| Display type | Digital |
| Air pressure | 4-7 bar |
| Frame material | Mild Steel |
Dart Impact Tester is used to determine the impact of load on a plastic film under specific conditions to analyze the effect of a free-falling dart. It is widely used in plastic film industries for judging the strength and stability of the plastic films and similar products. Related standard ASTM D1709-16A The machine is equipped with a clamp having 127mm diameter from inside. Heights of fall can be set on the scale 660mm & 1524 mm (adjustable as per standard) Diameter of dart head: A- 38mm & B- 50.8mm ± 0.13mm Dart weight: 50 grams to 900 grams with incremental weights of 5 grams. It is equipped with a digital counter & in-built vacuum pump. Electromagnetic dart release mechanism.
