Digital Compression Testing Machine Plate Power Pack Model 2000 kN
₹179,500
Product Code :
| Control Type | Fully automatic |
|---|---|
| Phase | Three phase |
| Max Cube Size | 300 mm |
| Accuracy Class | Class 2 |
| Data Output | Printer port, USB, Ethernet, RS232 |
| Frame Type | Four pillar type |
| Automation Grade | Automatic |
| Brand | Aimil |

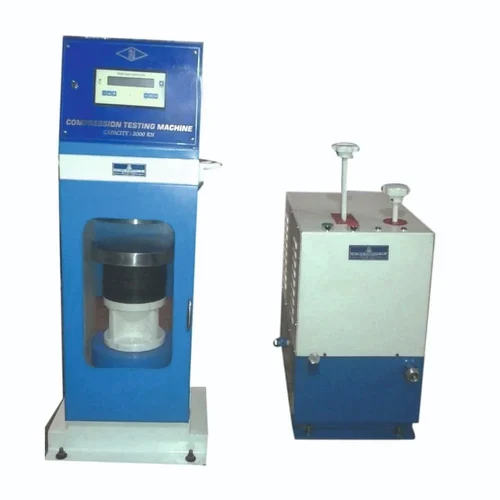

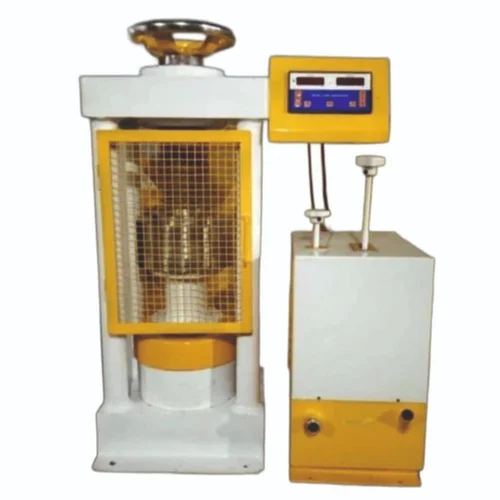

AS PER IS: 14858-2000 The Digital Compression Testing Machine has been designed to meet the need for a simple, economic and reliable means to test concrete for its compressive strength. The design emphasizes simplicity, both of construction and operation, and makes the machine easy to use and maintain. The unit is compact, making its useful for site applications. The Complete Unit comprises of : Loading Unit : The loading unit is of fully welded construction having a cross head, base and solid plates. The hydraulic jack is fixed to the base. The platens of the machine are hardened, ground and polished. The upper platen is provided with self-aligning action. To facilitate testing of various size specimens, suitable size spacers are provided complete with ball seating arrangement. Pumping Unit: The two speed pump facilitates rapid approach of the platens for daylight closure and also provides comprehensive control over the application of load. Available Capacity. 1000 kn (100 Ton) 1200 kn (120 Ton) 1500kn (150 Ton) 2000kn (200 Ton)
Features:
- 1000 kn (100 Ton)
- 1200 kn (120 Ton)
- 1500kn (150 Ton)
- 2000kn (200 Ton)
