Digital Earth Tester
₹5,250
Product Code :
| Test Method | 3 Pole |
|---|---|
| Resistance Range | 0.01–2000 Ω |
| Earth Tester Type | Handheld |
| Power Source | Battery |
| Protection Class | CAT II |
| Display Type | Digital |
| IP Rating | IP65 |
| Max Test Voltage | 50 V AC |
| Measurement Range | 1000 Ohm |
| Country of Origin | Made in India |
| Availability | In Stock |

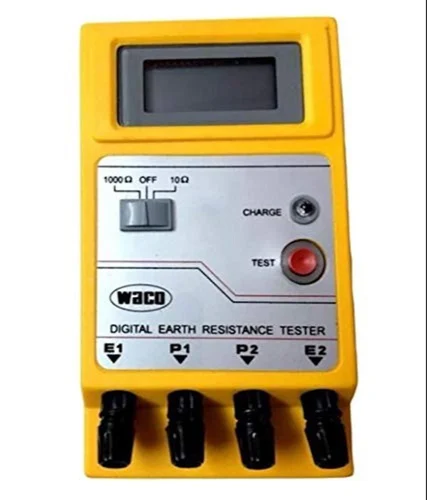

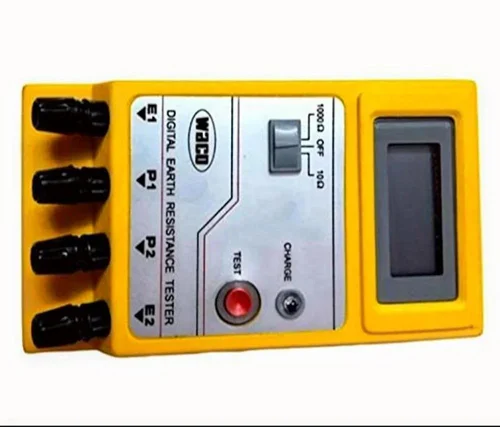

"WACO" Digital Earth Resistance Tester is direct replacement of the conventional hand generator type
tester. It is designed for measurement of the resistance of earthing used in the electrical equipment as well as for measurements of ground resistivity. It can also be used for measurements of the other low
regular and liquid resistance. This Instrument finds wide application for testing earthing installations in
power based industries, telecommunication net-works and electrical traction systems, etc. This is powered by rechargeable Nicd Cells, A LCD low battery indication appears when its battery goes down, which can be recharged goes down, which can be recharged by connecting Mains AC Supply through Charging Leads provided with the instrument. It has 3 ½ digit Liquid Crystal display. Its dimension are 165 x 50 x 95 mm, and weight approx 750 gms. Having measuring range 0-10-1000 ohms
Features
• 4 wires earth measurement
• Soil Resistivity measurement
• Conductor resistance measurement
• 3 ½ Digit LCD Display
• Rechargeable NICD Batteries
