Digital Multi Meter
₹1,250
Product Code :
| Maximum DC Voltage | 600 V |
|---|---|
| Max Dc Voltage | 600 V |
| Maximum AC Voltage | 600 V |
| Max Ac Voltage | 600 V |
| Display Count | 1999 Count |
| Maximum DC Current | 400 mA |
| Max Dc Current | 10 A |
| Maximum AC Current | 400 mA |
| Brand | Beetech |
| Weight | 170g (battery included) |
| AC Voltage | 600V |
| DC Voltage | 600V |
| Resistance | 2M |
| Display Mode | 3 1/2 digit, 7 segment LCD display |
| Maximum Display | 1999 |
| Power Supply | 9V NEDA 1604 or 6F22 battery |
| Dimensions | 138(L) x 69(W) x 31mm(H) |
| Country of Origin | Made in India |
| Availability | In Stock |

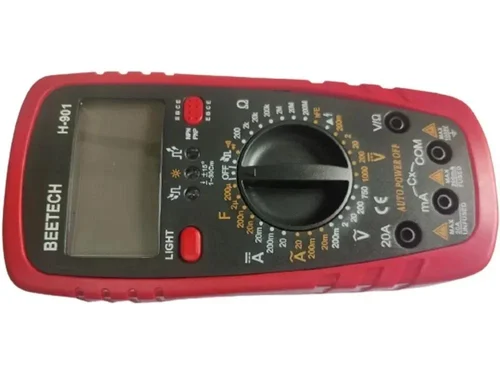

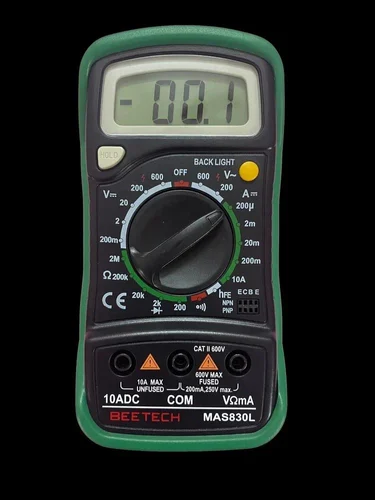

The instrument of this series is a small hand-held 3 ½ digital multimeter featuring stable, highly reliable and anti-drop performance. It is provided with a LCD display of 15mm height for clear reading. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit, making it a superior and handy instrument. It can be used to measure DC and AC voltage, DC current, resistance, diodes, transistors, temperature and for in-circuit continuity test.
Features:
- AC & DC Voltage
- DC Current
- Resistance
- Temperature
- Transistor Hfe Test
- Diode & Continuity Test
- Polarity indication: "-" displayed for negative polarity
- Low battery indication:
- Over range indication: "1" displayed
- Auto Power Off
- Back light optional
