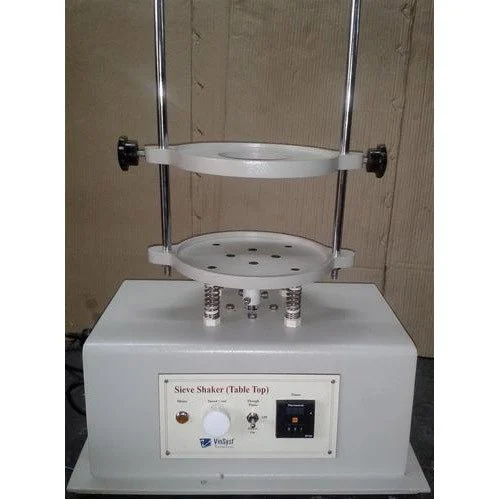

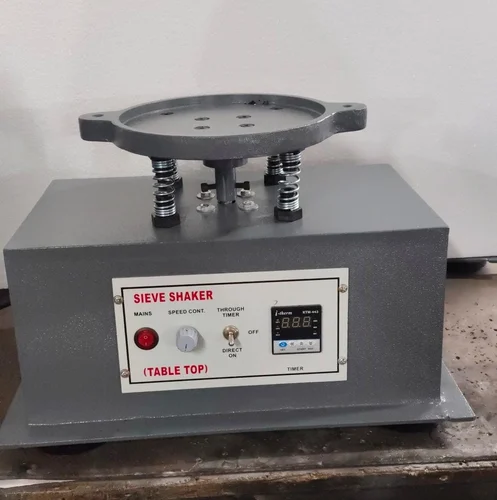

sieve analysis in Applications of Cements, Sands, Crushed Rocks, Clays, Granites, Feldspars, Coals, Soils, Wide range of Manufactured Powders, Grains, Seeds, Food Processing Industry, etc. It is an ideal equipment for normal day to day Laboratory or On-Site Purpose, suitable for 8 Test Sieve ( Soundless, Vibration Type) Method The Vertical & Horizontal throwing motion is overlaid with a slight circular motion which results in distribution of the sample amount over the whole sieving surface. The particles are accelerated in the vertical & horizontal direction. In the air they carry out free rotations and interact with the openings in the mesh of the sieve when they fall back. If the particles are smaller than the openings, they pass through the sieve. If they are larger, they are thrown upwards again. The Rotating motion while suspended increases the probability that the particles present a different orientation to the mesh when they fall back again and thus might eventually pass through the mesh. Housing Heavy gauge mild steel powder coated Standard fittings Clamps and steel rods Test sieves 8 x 2 inch (Dia. x Height) Number of test sieves 7 +1 lid Motor ⅛ HP Vibration control Speed regulator Timer Mechanical timer up to 60 minutes Power supply 220 Volts 50Hz Optional • Brass test sieves with Lid & Pan • Digital timer 0 – 60 minutes
