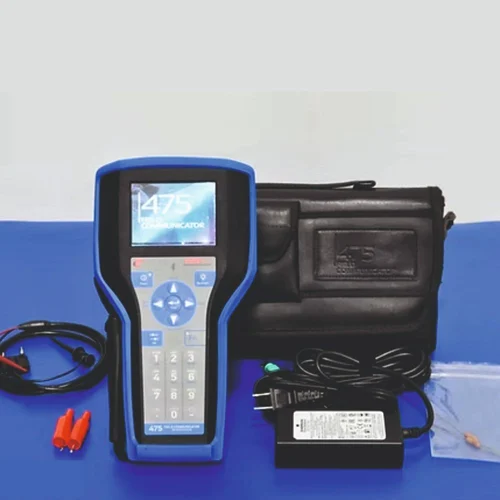

This built-for-purpose handheld communicator delivers universal support for HART and Foundation Fieldbus devices, a full-color graphical user interface, and a long-lasting Lithium-Ion power module. Run valve diagnostics in the field with the ValveLink Mobile application. You can quickly perform tests including valve signature, dynamic error band, PD one button sweep, and step response on HART and Foundation Fieldbus Fisher FIELDVUE digital valve controllers.

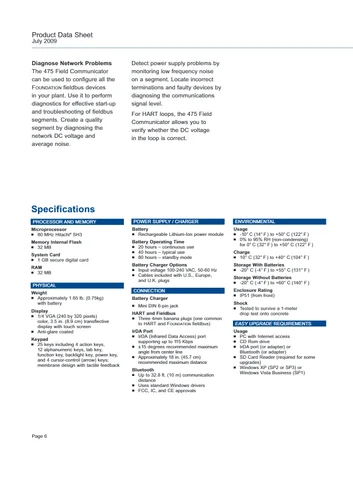

• Microprocessor: 80 MHz Hitachi® SH3
• Memory: Internal Flash 32 MB
• System Card: 1 GB secure digital card
• RAM: 32 MB
• Weight: 1.65 lb. (0.75kg) with battery
• Display: 1/4 VGA (240 by 320 pixels) color, 3.5 in. (8.9 cm) transflective display with touchscreen
• Anti-glare coated
• Keypad 25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key,
• power key, and 4 cursor-control (arrow) keys; membrane design with tactile feedback
• Battery Rechargeable Lithium-Ion power module
• Battery Operating Time 20 hours – continuous use
• 40 hours – typical use
• 80 hours – standby mode

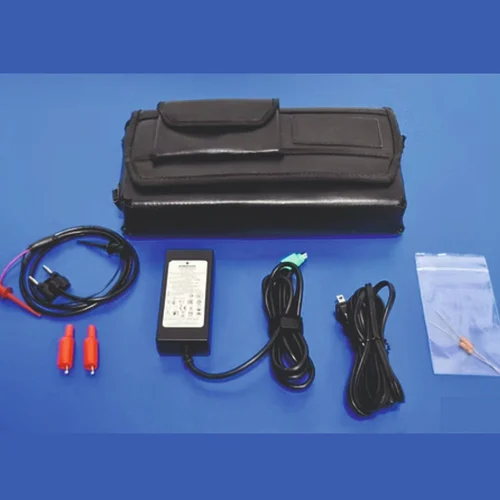

• Battery Charger Options: Input voltage 100-240 VAC, 50-60 Hz
• Battery Charger: Mini DIN 6-pin jack
• HART and Fieldbus Three 4mm banana jacks (one common to HART and Foundation Fieldbus)
• IrDA Port IrDA (Infrared Data Access) port supporting up to 115 Kbps
• ±15 degrees recommended maximum angle from center line
• Approximately 18 in. (45.7 cm) recommended maximum distance
• Bluetooth Up to 32.8 ft. (10 m) communication distance
• Uses standard Windows drivers
• FCC, IC, and CE approvals
• Usage -10°C (14°F) to +50°C (122°F)
• Battery 0% to 95% RH (non-condensing) for 0°C (32°F) to +50°C (122°F)
• Charge 10°C (50°F) to +40°C (104°F)
• Storage With Batteries -20°C (-4°F) to +55°C (131°F)
• Storage Without Batteries -20°C (-4°F) to +60°C (140°F)
• Enclosure Rating IP51 (from front)
• Shock Tested to survive a 1-meter drop test onto concrete
