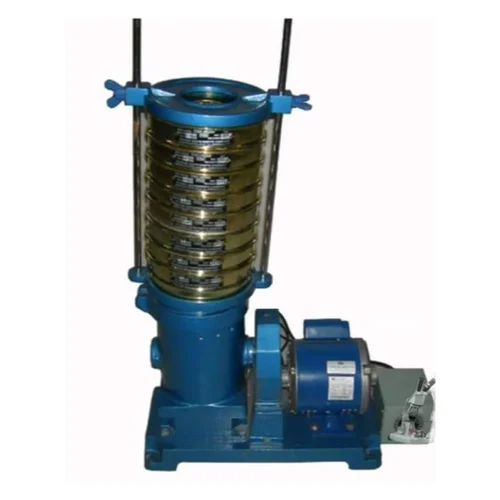

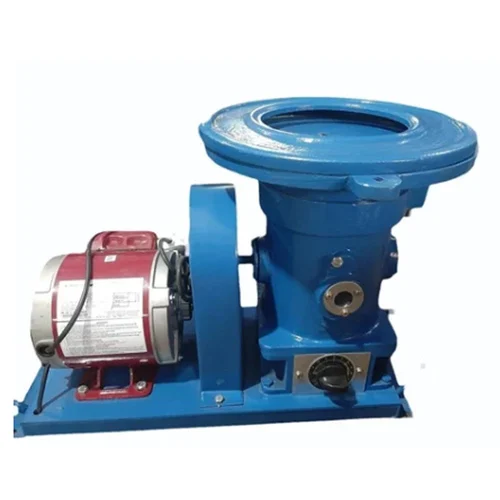

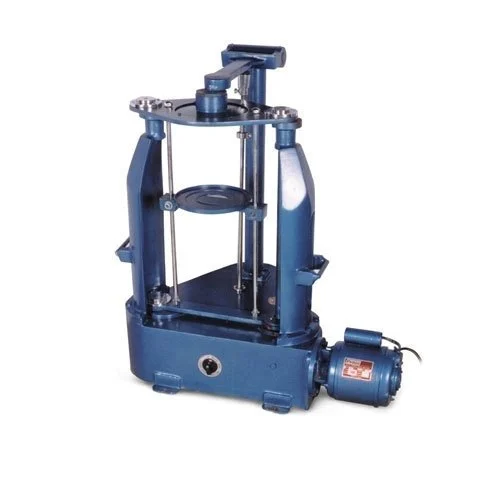

Gyratory Sieve Shaker
₹55,000
Product Code :
| Sieve dia | 300 mm |
|---|---|
| Sieve capacity | 8 sieves |
| Drive type | Motorized |
| Motion type | Gyratory |
| Speed range | 1400-2800 rpm |
| Timer range | 0-60 min |
| Clamping type | Rod clamp |
| Body material | MS powder coat |
Gyratory type shaker is driven by FHP motor through a reduction gear suitable to carry up to 7 sieves of 20 cm diameter. When clamped the sieve table does not rotate but it is inclined from the vertical axis and the direction of inclination changes progressively in the clockwise direction. In addition to the gyratory motion of the shaker, there is an upward and downward movement ensuring that each square inch of the sieve is utilized. The whole mechanism runs in an oil bath. A time switch from 0-60 minutes is provided.
Technical Specification :-
| Material | Mild Steel |
| Sieves Diameter | 7-8 inch |
| Motor Power | 1/4 HP |
