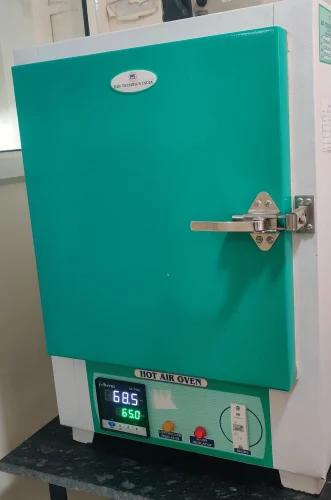

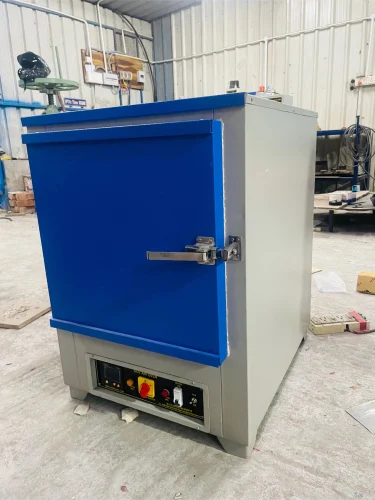

Laboratory Hot Air Oven
₹14,000
Product Code :
| Capacity | 90 L |
|---|---|
| Max Temperature | 200 °C |
| Chamber Type | Double Wall |
| Temperature Control | Digital PID |
| No. of Shelves | 3 Shelves |
| Inner Chamber Material | SS 304 |
| Power Rating | 1.5 kW |
| Power Supply | 230 V AC |
| Usage/Application | Laboratory |
| Temperature Range | 50-150 Degree Celsius |
| Material | Mild Steel |
| Type | Lab Type |
| Size | 450 x 450 x 450 mm |
| Model Name/Number | PSI-030 |
| Heating Media | Heater are placed Bottom of the inner chamber |
| Max Temperature | 200'C |
| No Of Trays | 2 |
| Air Circulation | Forced Air Circulation |
| Chamber Volume | 100 Litre |
| Number Of Shelves | 2 |
| No Of Chamber | One |
| Color | Blue, White |
| Country of Origin | Made in India |
| Availability | In Stock |
Specifications:
- Double walled Unit.
- Inner chamber made of S.S.
- Outer chamber of Mild Steel with Powder coating.
- Gap Between the two walls filled with glass wool insulation to avoid heat loses of 65 mm.
- Heating element Are Made of high grade chrome plated S.S Air Heater.
- Heater are placed Bottom of the inner chamber.
- Temperature Temp. Range 50˚C to 200˚C Accuracy ±0.5 ˚C.
- Temp. Sensor: RTD Class A type High Accuracy.
- Air Ventilation is placed on top of sides to remove heat gases and fumes.
- Control Switch & pilot lamps are fitted on front panel.
- Supplied with S.S. Wire mesh Jali.
- Micro Processor Auto Tune PID Digital Controller.
- Air Circulation Fan.
- Power Supply 220/240 V Single Phase.
