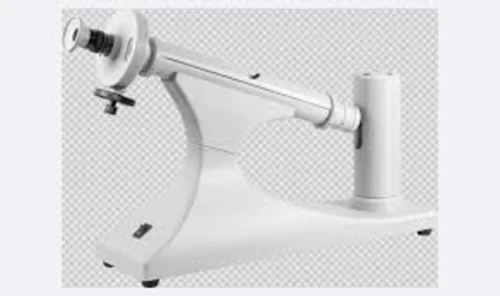

STS-444 Manual Polarimeter is ideal for determining concentration levels of samples for applications in the medical, educational, pharmaceutical, and cosmetic industries etc.

Easy Measurement:

• The polarimeter with 589.44 nm monochromatic sodium lamp. After powered on, the polarized light beam is immediately project on filter, polarizer etc. You can view the visual fields of brightness or shade through eyepiece.

Purity Measurement:

• The polarimeter is ideal for determining purity of sample. If you want to know its purity, you need only measure its the angle of rotation and calculate it.

Concentration Measurement:

• For some substance of known specific optical rotation, you can measure its the angle of rotation and calculate concentration according to formula.

International Sugar Scale:

• According to international sugar scale, put the 26 g pure sugar in solution, The angle of rotation of solution is 34.626
• By the rules, you can calculate the purity of sugar.

What's included:

• 100/200 mm tube, Sodium lamp.

Technical Specifications:

• Measuring Range: -180° ~ +180°
• Scale Value: 1°
• Vernier: ±0.05°
• Magnifier: 3 X
• Light Source: Sodium lamp
• Wavelengths: 589.44 nm
• Tube Length: up to 200 mm
• Stable Time: 10 minutes.
• Power Requirements: 220 VAC / 50 Hz
• Dimensions: 500 (L) mm × 135 (W) mm × 330 (H) mm
• Weight: 5 Kg

  Usage/Application	Laboratory
  Light Source	Sodium Lamp
  Application	Industrial
  Scale Value	1 degree
  Magnifier	3 X
  Availability	In Stock

  STS-444 Manual Polarimeter is ideal for determining concentration levels of samples for applications in the medical, educational, pharmaceutical, and cosmetic industries etc.



  Easy Measurement:



• The polarimeter with 589.44 nm monochromatic sodium lamp. After powered on, the polarized light beam is immediately project on filter, polarizer etc. You can view the visual fields of brightness or shade through eyepiece.

• Purity Measurement:



• The polarimeter is ideal for determining purity of sample. If you want to know its purity, you need only measure its the angle of rotation and calculate it.

•

  Concentration Measurement:

• For some substance of known specific optical rotation, you can measure its the angle of rotation and calculate concentration according to formula.

•

  International Sugar Scale:

• According to international sugar scale, put the 26 g pure sugar in solution, The angle of rotation of solution is 34.626
• By the rules, you can calculate the purity of sugar.

•

  What's included:



• 100/200 mm tube, Sodium lamp.

• Technical Specifications:



• Measuring Range: -180° ~ +180°
• Scale Value: 1°
• Vernier: ±0.05°
• Magnifier: 3 X
• Light Source: Sodium lamp
• Wavelengths: 589.44 nm
• Tube Length: up to 200 mm
• Stable Time: 10 minutes.
• Power Requirements: 220 VAC / 50 Hz
• Dimensions: 500 (L) mm × 135 (W) mm × 330 (H) mm
• Weight: 5 Kg
