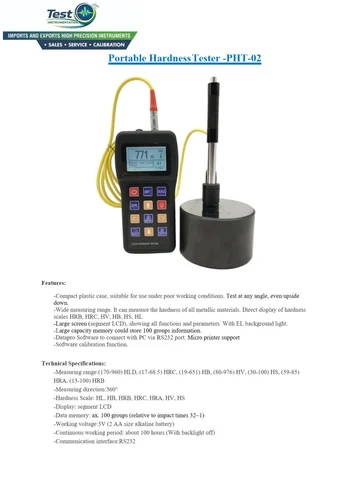

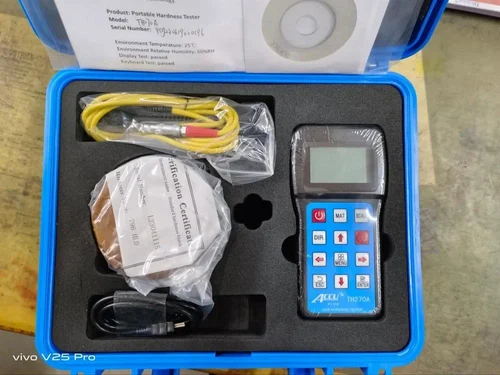

Portable Hardness Tester
₹25,000
Product Code :
| Hardness Scale | HRC |
|---|---|
| Power Source | Battery |
| Test Principle | UCI |
| Accuracy | 3 % |
| Test Range | HL 170 to 960 |
| Test Force | 3 kgf |
| Display Type | Digital |
| Portability | Portable |
| Parameter | HRC |
| Display Type | Digital |
| Model Name/Number | TH 270A |
| Brand | Imported |
| Automation Grade | Semi-automatic |
| Hardness Scale | HRC, HB, HV |
| Availability | In Stock |
Technical Specifications: -Measuring range:(170-960) HLD, (17-68.5) HRC, (19-651) HB, (80-976) HV, (30-100) HS, (59-85) HRA, (13-100) HRB -Measuring direction:360 -Hardness Scale: HL, HB, HRB, HRC, HRA, HV, HS -Display: segment LCD -Data memory: ax. 100 groups (relative to impact times 32~1) -Working voltage:3V (2 AA size alkaline battery) -Continuous working period: about 100 hours (With backlight off) -Communication interface:RS232 Main Application -Die cavity of molds -Bearings and other parts -Failure analysis of pressure vessel, steam generator and other equipment -Heavy work piece -The installed machinery and permanently assembled parts. -Testing surface of a small hollow space -Material identification in the warehouse of metallic materials -Rapid testing in large range and multi-measuring areas for large-scale work piece
