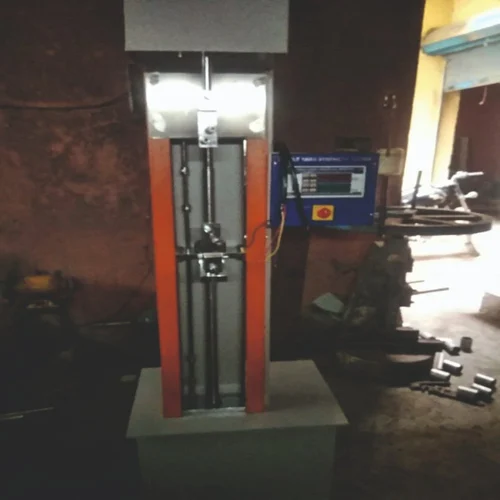

Tensile Strength Testing Machine
₹95,000
Product Code :
| Application | Yarn, Plastic Film, Rubber, Fabric, Corrugated Box, Paper |
|---|---|
| Capacity | 500 N |
| Control Mode | Digital Panel |
| Frame Type | Single Column |
| Loading Type | Electromechanical |
| Max Crosshead Travel | 300 mm |
| Speed Range | 0.5-500 mm/min |
| Standards | ASTM D882 |
Machine Features
- Aluminium alloy load frame giving high strength and stiffness.
- Fully digital tensile testing system with high precision control and accuracy, includes automated computer control of test methods giving simplicity of operation.
- High resolution auto ranging load cells with accuracies better than +/-0.5% down to 1/1000th of the load cell capacity
- Automatic recognition and calibration of load cells and extensometers, with instant calibration check facility.
- 800% overload capability of load cells without damage
- Small footprint design, giving economy of bench and floor space.
- High efficiency pre-loaded self cleaning ballscrews for fast, quiet testing. Fitted with sealed for life lubricated end bearings.
- Crosshead guidance system providing precise alignment and smooth running.
- Precision crosshead control via digital AC servo drive and brushless servo motor giving maintenance free operation and 4,000,000 steps per revolution positional control.
- High speed data collection systems for up to 4 synchronous channels
