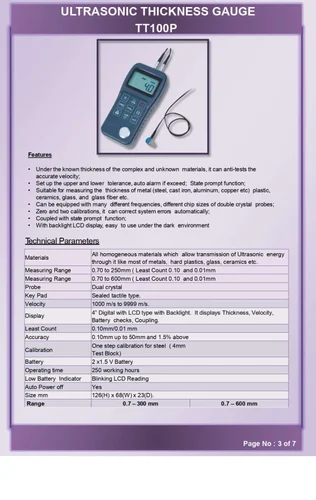

Ultrasonic Thickness Gauge Tt100
₹32,000
Product Code :
| Gauge Type | Ultrasonic Gauge |
|---|---|
| Measuring Range | 0.75-300mm |
| Application | Coating |
| Probe Frequency | 2.5 MHz |
| Resolution | 0.01 mm |
| Material Mode | Glass, Steel, Plastic, Copper, Aluminium, Cast Iron |
| Data Interface | USB |
| Throat Depth | 30 mm |
|
Accuracy |
0.1 % |
|
Power Supply |
2 X 1.5 AAA batteries |
|
Resolution |
0.01 mm |
|
Display |
4 digit display |
|
Least Count |
0.1 mm |
|
Range |
0.75-300mm |
|
Pipe Thickness |
20x3.0mm |
|
Sound Velocity |
1000-9999 |
|
Memory |
40 Values |
|
Measuring Range |
300 mm |
|
Probe Diamete |
10 mm |
Features
• Undertheknownthicknessof the complex and unknown materials,itcananti-teststhe accuratevelocity;
• Setuptheupperandlower tolerance,autoalarmifexceed; Statepromptfunction;
• Suitableformeasuringthe thicknessofmetal(steel,cast iron,aluminum, copper etc) plastic, ceramics, glass, and glass fiberetc.
• Canbeequippedwithmany differentfrequencies,different chip sizes of double crystal probes;
• Zeroandtwocalibrations,it cancorrectsystemerrors automatically;
• Coupledwithstateprompt function;
• WithbacklightLCDdisplay,easy touseunderthedark environment
